USI-82GSE

USI-82GSE is a 8-port 10/100/1000Mbps and 2-port 1000Mbps SFP industrial unmanaged Ethernet switch.

Contact

Description

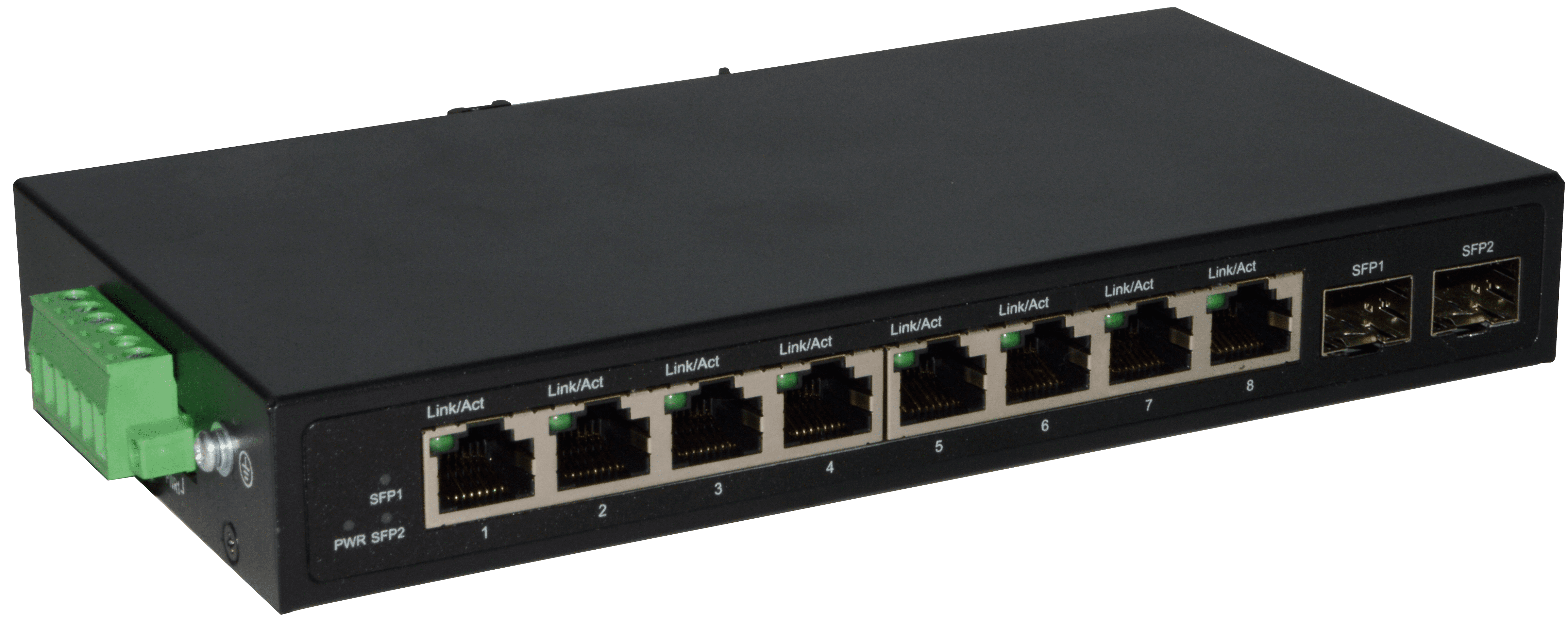

USI-82GSE is a 8-port 10/100/1000Mbps and 2-port 1000Mbps SFP industrial unmanaged Ethernet switch. This product is designed for an industrial environment. USI-82GSE provides power redundancy with dual 12-48 VDC inputs, it has IP40 rated metal housing with DIN rail mounting bracket. The switches have 6 kV surge protection to protect against damages caused by random power spikes. USI-82GSE operates at temperatures of -40~75°C (-40 °F ~ 167°F) and addresses the needs of industrial automation control. LED indicators on the front panel show ports and system operating status allowing for clear real-time diagnostics and troubleshooting of network failures if any occur.

  • Complies with IEEE 802.3i, IEEE802.3z, IEEE 802.3u, IEEE802.3x, IEEE802.3ab standards
  • 8 x 10/100/1000Mbps Auto MDI/MDI-X Ethernet ports
  • 2 x 1000Mbps SFP ports
  • Supports IEEE802.3x flow control for Full-duplex mode and Half-duplex backpressure
  • 4K MAC address table with auto-learn option and automatic aging
  • LED indicators for monitoring Link / Activity
  • Dual 12~48VDC inputs with power redundancy
  • Power off Alarm (2-pin relay output for a user-configured alarm, max. rated 24VDC @ 1A)

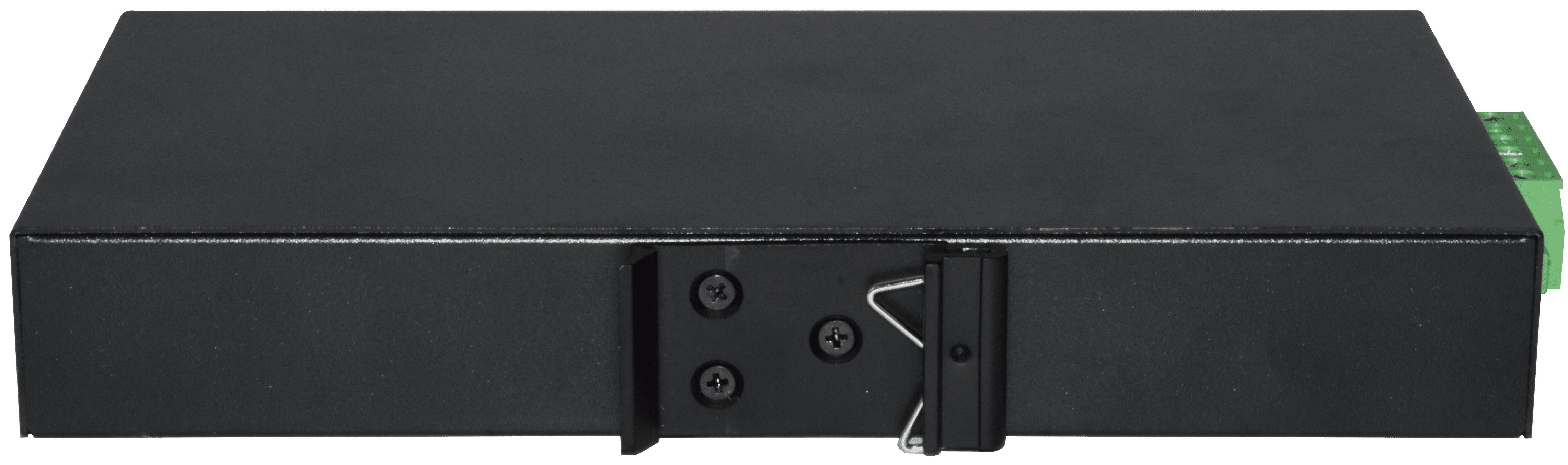

  • Metal chassis design supports IP40 protection grade and a mounting on a DIN rail
  • Switch surge protection up to 6 kV

Specifications

General features

Standard

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z

Monitoring and Management

Web management interface

No

Telnet connection

No

SNMP support

No

Switch

The number of switch ports

8 x 10/100/1000Mbps RJ-45 ports (Auto Negotiation/Auto MDI/MDIX), 2 x 1000Mbps SFP ports

PoE

No

PoE budget

No

Switching Capacity

20 Gbps

MAC address table

4K

Jumbo Frame

9600 Bytes

Packet Forwarding Rate

14.88 MPPS

Packet Buffer

1.75 Mb

Transfer Method

Store-and-Forward

Addition

Width

190 mm (7.48 inches)

Height

28 mm (1.10 inches)

Depth

100 mm (3.93 inches)

Further information

Power

Dual DC 12~48V, 6-pin terminal block connector

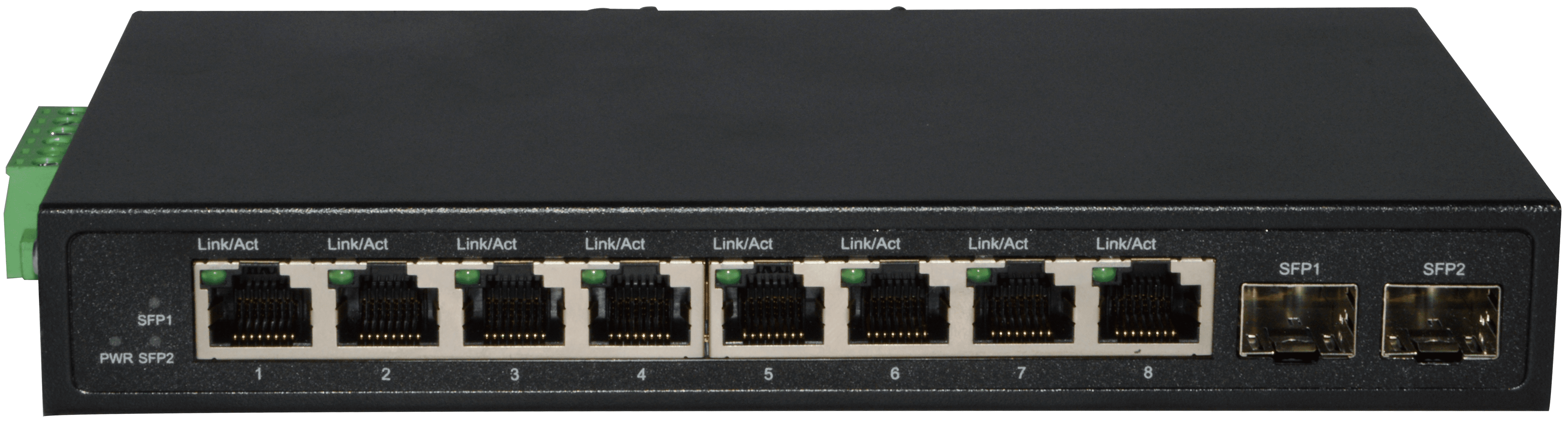

LED indicators

PWR, Link/Activity, PoE, SFP (per port)

Operating Temperature

-40℃ to 75℃ (-40 °F to 167°F)

Storage Temperature

-40℃ to 85℃ (-40 °F to 185°F)

Operating Relative Humidity

5% to 95% (non-condensing)

Package Contents

USI-82GSE switch, DIN rail mounting kit, User Manual

Certificates

CE, FCC, EAC
