UR-323N4G

UPVEL UR-323N4G router is designed to provide sustainable Internet access in weak signal areas of mobile 4G LTE (LTE-FDD / TDD-LTE) and 3G (HSDPA/HSUPA/WCDMA) networks, as well as to join wireless devices in a single Wi-Fi network.

Contact

Description

UPVEL UR-323N4G router is designed to provide sustainable Internet access in weak signal areas of mobile 4G LTE (LTE-FDD / TDD-LTE) and 3G (HSDPA/HSUPA/WCDMA) networks, as well as to join wireless devices in a single Wi-Fi network. This model comprises an integrated LTE/4G/3G modem with USIM slot, four Ethernet LAN ports, one Ethernet WAN port, Wi-Fi access point module functioning at 300 Mbps and compliant with IEEE 802.11n standard, two embedded GSM antennas that ensure good signal reception, and two SMA slots for connecting MIMO antennas. Antennas from the bundle can be used in strong reception conditions, but external LTE/4G/3G antennas are recommended for weak reception conditions or to achieve a significant increase in data transmission speed. The router does not require any preliminary setup since a Wi-Fi network name and a password are printed on the router’s label. The router will automatically obtain the mobile operator and the required settings directly from the SIM card. If you want to change any settings, you can do it through the web management interface. Integrated MESH technology enables creating a seamless coverage across the wireless LAN infrastructure by joining several access points that support MESH functionality. Additionally, the UR-323N4G router supports parental control, Yandex.DNS, Norton ConnectSave services.

  • Frequency bands: 800 / 900 / 1800 / 2100 / 2600 MHz
  • Cellular standards: UMTS-900, UMTS-2100, LTE800, LTE1800, LTE2600
  • Support 2G/3G/4G
  • Maximal transmitter power 20 dBm (200 mW)
  • Maximum rate: Downlink 150 Mbps and Uplink 50 Mbps for 4G (LTE); Downlink 2.8 Mbps and Uplink 2.2 Mbps for TD-SCDMA
  • USIM card support
  • Connection of more than 50 Wi-Fi clients
  • Wi-Fi MESH mode
  • Network traffic statistics
  • Dual access support: PPPoE, L2TP, PPTP
  • Yandex DNS option
  • Norton ConnectSafe service

Specifications

Features General features

Standard

Cellular: LTE/HSPA+/HSPA/HSUPA/HSDPA/WCDMA; Wired: IEEE 802.3; Wireless: IEEE 802.11b/g/n 300 Mbps

Frequency Range

FDD LTE: B1, B3, B7, B8, B20, B28; TDD LTE: B38, B40, B41; UMTS: B1, B5, B8; GSM: 900/1800MHZ

Interfaces

5 x Ethernet RJ-45 ports, 2 x SMA-female ports, 1 x SIM/ USIM 1.8V / 3.3V slot, 1 x USB 2.0 port

Wi-Fi

Standard

IEEE 802.11b/g/n at 300 Mbps

Transmitter Power

20 dBm

Number of Embedded Antennas

2

Embedded Antenna Gain

3 dBi

Maximum Wi-Fi clients

52

802.11s support

MESH

LTE

Number of external antennas

2 omni-directional

External Antenna Gain

5 dBi

SMA-female port

2

Data transmission rate

LTE (Dual Stream and CAT4 support): 150 Mbit/s Downlink and 50 Mbit/s Uplink; WCDMA: HSPA+ up to 21.6 Mbit/s in the downlink, HSUPA: uplink data rates of 5.76 Mbit/s

Router

Print Server

Yes

Bridge mode

Yes

IP-filtering

Yes

MAC-filtering

Yes

Media server

Yes

Monitoring and Management

Web management interface

Yes

TR-069

Yes

DNS Support

Dynamic DNS

Yes

Yandex DNS

Yes

Norton ConnectSafe

Yes

Further information

Power

Input: 100–240 VAC 2A 50/60 Hz Output: 12V DC±10% 1A

LED

Power, 4G/LTE Link, WPS, WLAN

Button

WPS, Reset, ON/OFF (Power)

Operating Temperature

0℃ to 40℃ (32 °F to 104°F)

Storage Temperature

-20℃ to 55℃ (-4 °F to 131°F)

Operating Relative Humidity

5% to 95% (non-condensing)

Storage Relative Humidity

5% to 95% (non-condensing)

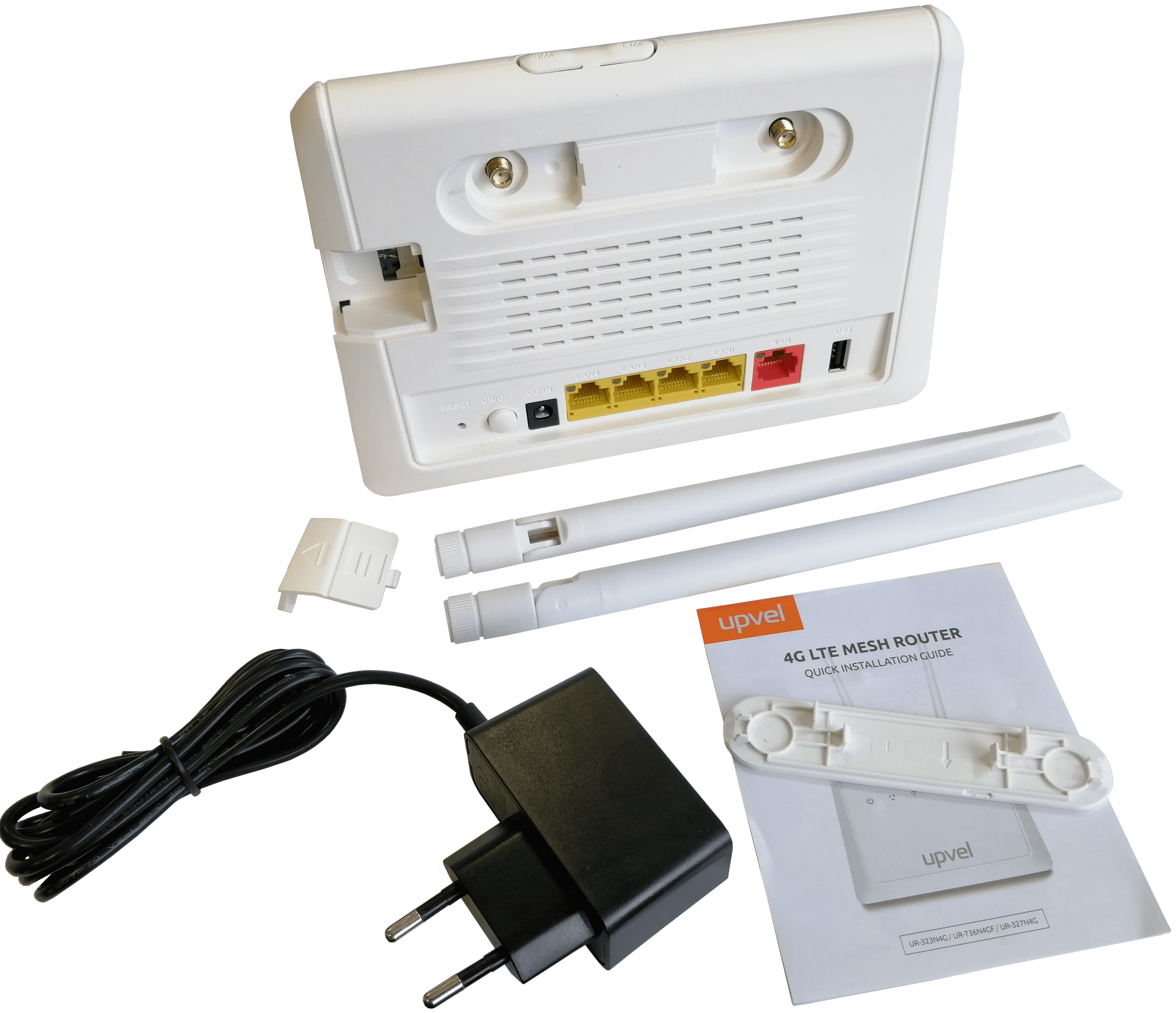

Package Contents

UR-323N4G router, AC/DC power adapter, two external 5 dBi antennas, User Manual

Services and Protocols

DHCP server

Yes

Dynamic DNS

Yes

DLNA

Yes

DMZ

Yes

FTP server

Yes

NTP client

Yes

UPnP AV-server

Yes

Virtual Server

Yes

VPN

PPPoE

Yes

PPTP

Yes

L2TP

Yes

PPTP (pass through)

Yes

L2TP (pass through)

Yes

Firmware (UR-323N4G)

Firmware version

3.4.11d.2ru

Release date

20-08-2020
