UP-309GEW

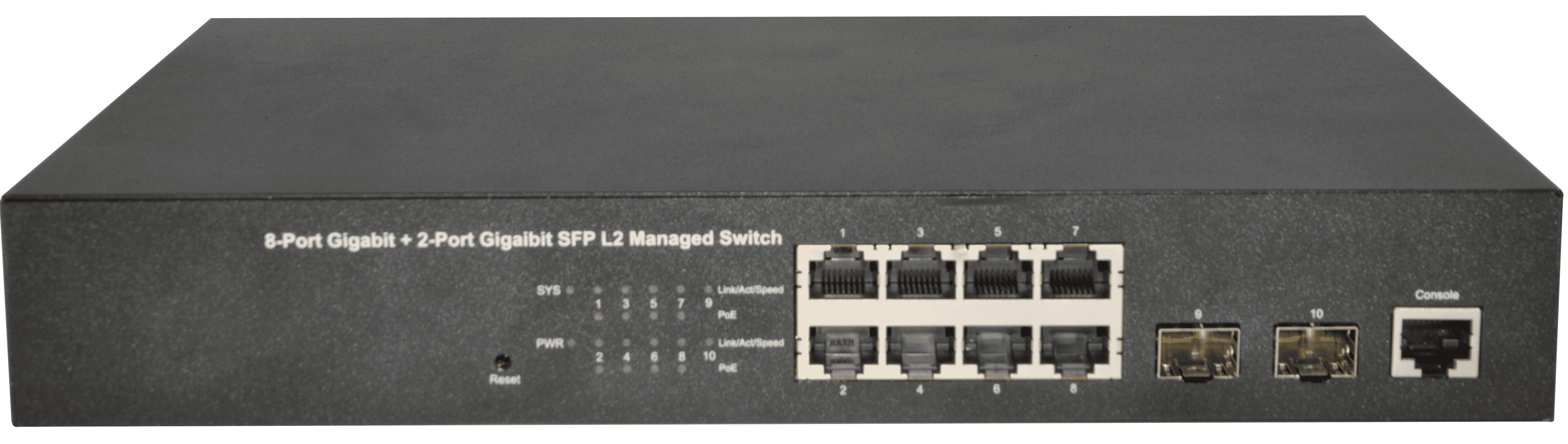

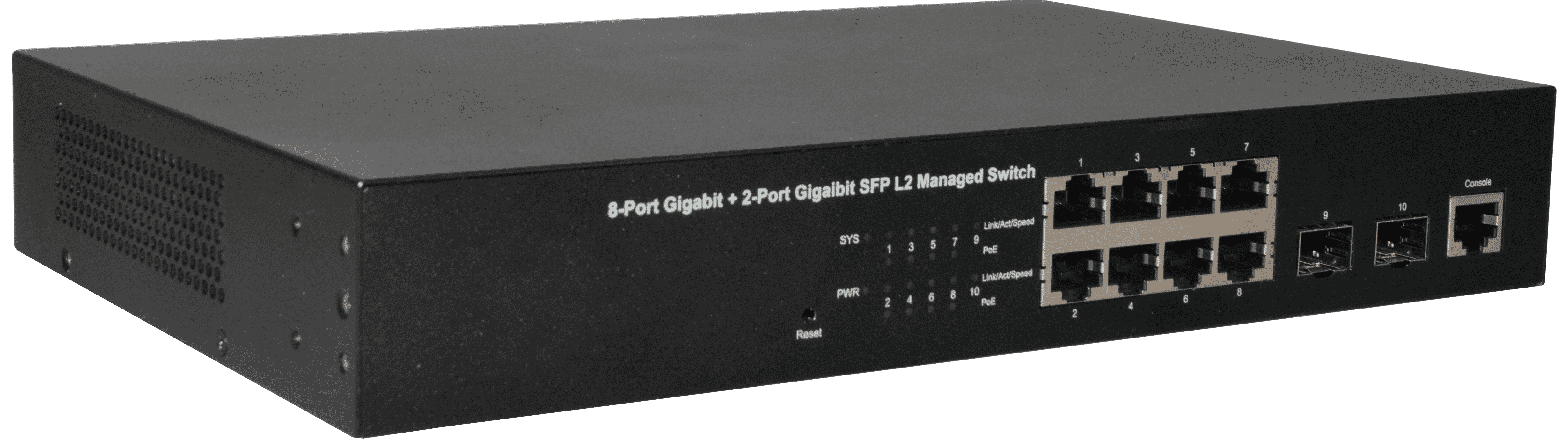

UP-309GEW is a high-performance Layer 2 (L2) managed Gigabit switch. It includes eight RJ-45 ports operating at 10/100/1000 Mbps and two SFP ports operating at 1000 Mbps.

Contact

Description

UP-309GEW is a high-performance Layer 2 (L2) managed Gigabit switch. It includes eight RJ-45 ports operating at 10/100/1000 Mbps and two SFP ports operating at 1000 Mbps, all ports support Auto MDI/MDIX mode and Storage-and-Forward mode. Combined with dynamic memory usage, this increases the efficiency of bandwidth allocation and resource optimization. UP-309GEW supports port-based VLANs and protocol-based VLANs allowing for network segmentation and data manipulation, respectively. The switch works with the Spanning Tree Protocol (STP / MSTP), which improves the fault tolerance and helps to ensure stable network operation. Additionally, the UP-309GEW switches support the Access Control Lists (ACL) that account for the time and the day of week. Support 802.1x authentication, based on the port and MAC address, helps customers to improve network security and prevents unauthorized access from unknown devices. Optimal QoS strategy and a wide range of VLAN features make UP-309GEW an invaluable piece of equipment for small-to-medium businesses, hotels, and campus area networks. PoE features are supported for IEEE 802.3at-compliant class 4 powered devices (PD), UP-309GEW switches automatically detect each PD’s power consumption and deliver up to 30 watts over Cat 5,6 cables with 25.5 watts available to devices. The switch tracks its power budget (PoE budget) of 140W and grants power only when it is available.

  • Complies with 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, EEE802.1q, IEEE802.1p, IEEE802.3af, IEEE802.3at
  • 8 x 10/100/1000Mbps Auto MDI/MDI-X RJ-45 ports
  • 2 x 1000Mbps SFP ports
  • Delivers up to 30W to PDs, PoE budget up to 140W
  • POE port management
  • 8K MAC address table with auto-learn option and automatic aging
  • IEEE802.3x Flow Control
  • Port Mirroring
  • IEEE 802.3az Link Aggregation Control Protocol (LACP)
  • Jumbo Frames 10 Kbyte
  • IGMP Snooping / IPv6 multicast
  • Supports IEEE 802.1x, RADIUS, TACACS+
  • LED indicators for PoE and Link / Activity/Speed
  • SSH/ Telnet/ Web Interface Management

Specifications

General features

Standard

EEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.3af, IEEE802.3at

Addition

Width

280 mm (11 inches)

Height

44 mm (1.69 inches)

Depth

180 mm (7.08 inches)

Switch

The number of switch ports

8 x 10/100/1000 RJ-45 ports, 2 x 1000Mbps SFP ports, 1 x Console port

PoE

8 x RJ-45 ports compliant with IEEE802.3at/af power pin assignment: a-mode, pins 1 and 2 (V+), pins 3 and 6 (V-)

PoE budget

140W

PoE management

on/off, port priority, port status

MAC address table

8K

Jumbo Frame

10K

Packet Buffer

4.1 Mb

Switching Capacity

20 Gbps

Forwarding Rate

14.88 MPPS

DHCP

Client

Port Mirroring

One to One/ Many to One

NTP/LLDP

Yes/Yes

Security

Username / Password protection; IEEE 802.1x: Port-based Access Control; IP Source Guard; MAC Based Authentication; Web-based Authentication; RADIUS: Authentication/ Accounting; TACACS+: Authentication; ACL (Access control list), DHCP Snooping(IP, MAC, Port), DoS attacks prevention, ARP Safeguarding

802.1q VLAN

Static VLAN, 802.1Q VLAN, GVRP

QoS

Number of Priority queue: 8 queues/ port; Scheduling for priority queue: SP, WRR, WFQ, SP+WRR, SP+WFQ; Classifier, Policy Rules

LACP

Static Trunk & IEEE 802.3ad with LACP; Max. Group: 5; Max. Ports/Group: 8

IGMP Snooping

IGMP Snooping; IPv6 multicast

Spanning Tree

STP; MSTP; Loop Detection

Storm Control

Broadcast/ Multicast/ Unknown Unicast

Monitoring and Management

Web management interface

Yes

Telnet connection

Yes

SNMP v1/v2c/v3

Yes

SSH v2

Yes

Command Line Interface (CLI)

Yes

ACL for SNMP/Web/SSH/Telnet

Yes

Event/Error Log

Yes

Software Download/ Upgrade

Yes

Configuration Download / Upload

Yes

Remote Ping

Yes

Cable Diagnostics

Yes

IPv6 Configuration

Yes

Further information

Power

100~240 VAC, 50/60 Hz, maximum consumption 163.2W

LED indicators

PWR, SYS, Link/Act/Speed, PoE (per port)

Operating Temperature

0℃ to 45℃ (32 °F to 113°F)

Storage Temperature

-40℃ to 70℃ (-40 °F to 158°F)

Operating Relative Humidity

5% to 95% (non-condensing)

Package Contents

UP-309GEW switch, mounting brackets kit, AC power cord, User Manual

Certificates

CE, FCC, EAC
