UP-164GS-M2

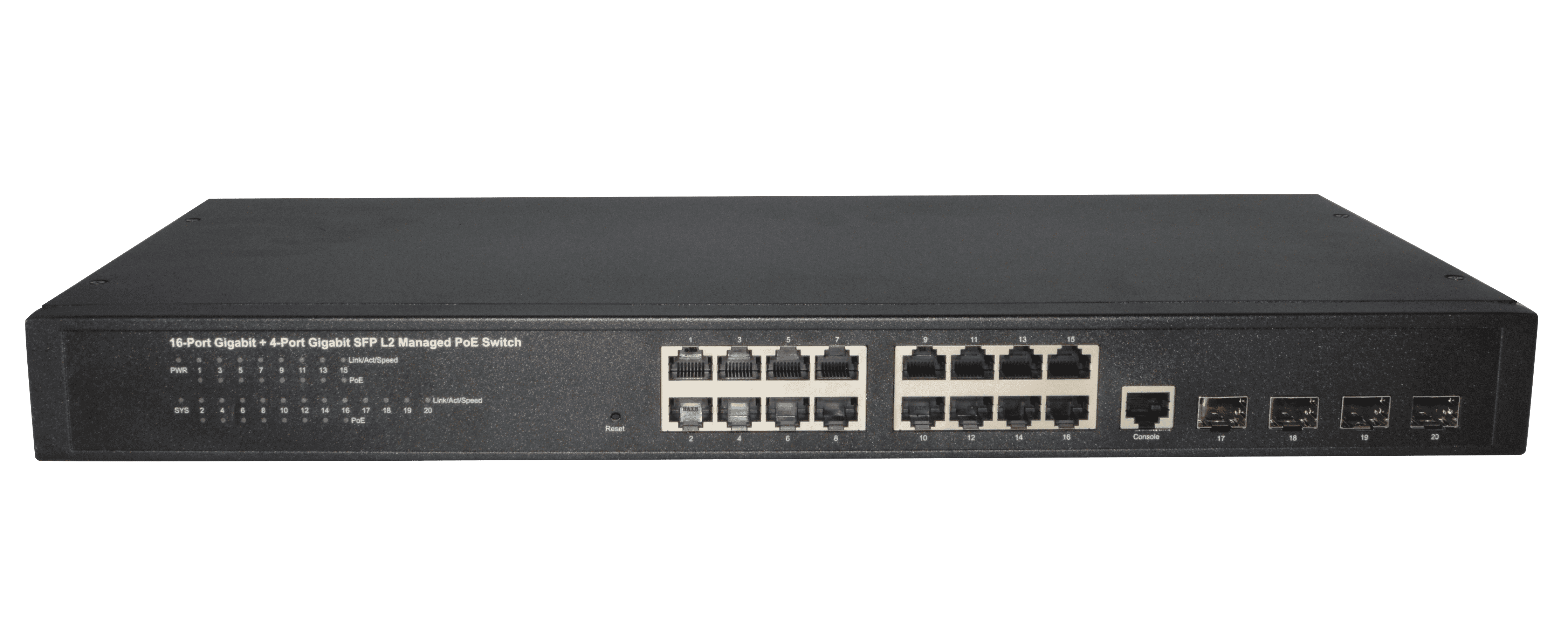

UP-164GS-M2 is a high-performance Layer 2 (L2) managed Ethernet switch with 16 Gigabit RJ-45 ports and 4 Gigabit SFP ports.

Contact

Description

UP-164GS-M2 is a high-performance Layer 2 (L2) managed Ethernet switch with 16 Gigabit RJ-45 ports and 4 Gigabit SFP ports. The switch provides higher bandwidth links for the related equipment and implements core network technologies including traffic control, network monitoring, traffic prioritization, access control, and secure features. UP-164GS-M2 supports port-based VLANs and protocol-based VLANs allowing for network segmentation and data manipulation, respectively. The switch works with the Spanning Tree Protocol (STP / MSTP), which improves the fault tolerance and helps to ensure stable network operation. Additionally, the UP-164GS-M2 switches support the Access Control Lists (ACL) that account for the time and the day of week. PoE features are supported for IEEE 802.3at-compliant class 4 powered devices (PD), UP-164GS-M2 switches automatically detect each PD’s power consumption and deliver up to 30 watts over Cat 5,6 cables with 25.5 watts available to devices. The switch tracks its power budget (PoE budget) of 240W and grants power only when it is available. PoE is a technology that delivers both data connection and electric power to devices over a single Ethernet cable. This allows the use UP-164GS-M2 for a broad range of devices and applications such as Wi-Fi access points, IP cameras, IP phones, etc. It also provides an opportunity of setting up network equipment without having to connect to AC power.

  • Complies with IEEE 802.3i, IEEE802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad
  • 16 x 10/100/1000Mbps RJ-45 ports
  • 4 x 1000Mbps SFP ports
  • Supports IEEE802.3at/af PoE standards
  • Delivers up to 30W to PDs, PoE budget up to 240W
  • 8K MAC address table with auto-learn option and automatic aging
  • Store-and-Forward Mode
  • SNMP / RMON protocols
  • Supports IEEE 802.1q VLANs, 4K VLANs
  • Complies with IEEE 802.1p QoS
  • 2K and 256 entries Ingress and Egress ACL
  • Storm Control

Specifications

General features

Standard

IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3x,IEEE802.3z,IEEE802.3ad,IEEE802.1p,IEEE802.1q, IEEE802.3at,IEEE802.3af

Addition

Width

440 mm (17.32 inches)

Height

44 mm (1.73 inches)

Depth

208 mm (8.18 inches)

Switch

The number of switch ports

8 x 10BASE-T/100BASE-TX/1000BASE-T RJ-45 ports

PoE

16 x RJ-45 ports compliant with IEEE802.3at/af; power pin assignment: a-mode, pins 1 and 2 (V+), pins 3 and 6 (V-)

PoE budget

240W

PoE management

on/off, port status, chip configuration

Jumbo Frame

9600 Byte

MAC Address Table

8K

Switching Capacity

40Gbps

Packet Forwarding Rate

29.76 MPPS

Packet Buffer

4.1 Mbit

Transfer Method

Store-and-Forward

DHCP

Client

Port Mirroring

One to One/ Many to One

NTP/LLDP

No/No

Security

Username / Password protection; ACL (MAC-Based, IPv4-Based), DHCP Snooping (IP, MAC, Port), DoS attacks prevention, MAC filtering, IP Source Guard

802.1q VLAN

802.1Q VLAN

QoS

Number of Priority queue: 8 queues/ port; Scheduling for priority queue: RR/SP/WRR/WFQ; Port based QoS, IEEE 802.1p Class of Service (CoS), DSCP-based QoS

LACP

Static Trunk & IEEE 802.3ad with LACP; Max. Group: 5; Max. Ports/Group: 8

IGMP Snooping

No

Spanning Tree

STP; MSTP

Storm Control

Broadcast/ Multicast/ Unknown Unicast

Monitoring and Management

Web management interface

Yes

Telnet connection

Yes

SNMP v1/v2c/v3

Yes

SSH v2

Yes

Command Line Interface (CLI)

Yes

ACL for SNMP/Web/SSH/Telnet

Yes

RMON (1,2,3, & 9 groups)

Yes

Event/Error Log

Yes

Software Download/ Upgrade

Yes

Configuration Download / Upload

Yes

Remote Ping

Yes

Cable Diagnostics

No

IPv6 Configuration

Further information

Power

100-240VAC / 50-60Hz 260W, maximum consumption 277W

LED indicators

PWR, SYS, Link/Act/Speed, PoE (per port)

Operating Temperature

0℃ to 45℃ (32 °F to 113°F)

Storage Temperature

-40℃ to 70℃ (-40 °F to 158°F)

Operating Relative Humidity

5% to 95% (non-condensing)

Package Contents

UP-164GS-M2 switch, mounting brackets kit, AC power cord, User Manual

Certificates

CE, FCC, EAC
